I. Overview:

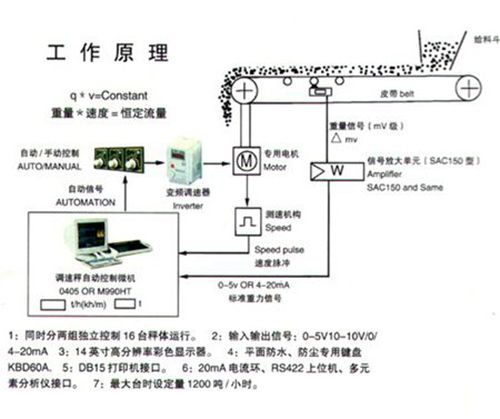

National standard tension sensor. It has a constant-edge tensioning device and is equipped with a driven and speed measuring system. It is the ideal dynamic measuring dynamic measuring device in China.

The machine is continuous dynamic metering, frequency conversion speed regulation, wide adjustment range of feeding amount, suitable for measuring ingredients in large and medium-sized cement, coking, phosphate fertilizer, glass, smelting and other industries. The metering material has small viscosity, block shape, granular shape and powder shape.

STC series has double-sided scraping function, which is suitable for metering, batching and effect of materials with certain stickiness. It is an ideal measuring equipment for coking, coal blending and other industries.

Second, technical parameters and characteristics:

1, using high reliability frequency conversion adjustment, wide belt, thick material layer, low speed operation

2, automatic quantification, high adjustment accuracy, wide adjustment range

3, the performance price ratio is good, the control precision is high, the stability is good, the price is only one third of the imported similar products

4, low operating and maintenance costs

5, control host features: a multi-purpose machine, dynamic analog display, window-based operation, perfect self-test function. The host contains system description, fault prompt, multiple control modes, production management and statistics.

6, dynamic cumulative error: better than 0.5

7, zero value stability: better than 0.0035% (max)

8, weighing signal linearity: better than 0.5%

9, the power supply voltage 220V~380V-50HZ

10, the use of ambient temperature: -10 ° C - +45 ° C, relative temperature ≤ 80%

11, speed sensor: pulse signal

12, Taiwan time range: 0.2-2000t / h

13, installation method: horizontal installation

14, tape width (mm): 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000

15, flow and percentage (weight) online given function

16. The material content is not more than 50mm, and the humidity is not sticky.
